DeWalt DCS785B: 20V MAX XR 12-Inch Double Bevel Sliding Miter Saw Explained

A 12-inch sliding miter saw is one of the most useful saws you can own. It crosscuts wide boards, cuts crown and baseboard, and handles angled cuts for decks and framing. For years, saws this size needed a cord. Now DeWalt offers the DCS785B, a 12-inch double bevel slider that runs on the same 20V MAX batteries as its drills, drivers and impact tools.

That sounds great, but a big cordless saw raises real questions. Will a 20V battery keep up? How many cuts will you get? Is it worth paying for cordless if you usually work near an outlet? In this guide, we answer those questions using DeWalt’s published specifications, so you can decide whether this saw fits your work. We have not run our own lab tests on it, so where we quote figures like runtime, we tell you they are the manufacturer’s claims.

In this article

1. Should You Buy the DeWalt DCS785B?
2. What Is the DeWalt DCS785B?
3. Key Specs at a Glance
4. Cut Capacity, Explained in Plain English
5. Batteries: 20V MAX vs FLEXVOLT, and Runtime
6. Dust Collection, Cutline and Accuracy Features
7. DCS785B vs Corded DWS780 (and Other Options)
8. Who Should Buy It (and Who Shouldn’t)
9. Setting It Up: First-Day Checklist
10. The Saw and Accessories Worth Buying
11. Common Mistakes (and How to Fix Them)
12. Pro Tips
13. Real-Life Examples
14. Frequently Asked Questions
15. Your DeWalt DCS785B Buying Checklist

Should You Buy the DeWalt DCS785B?

Here is the quick decision guide.

• Buy it if you already own DeWalt 20V MAX or FLEXVOLT batteries, you work on decks, remodels or job sites without easy power, and you need 12-inch capacity.
• Think twice if you have no DeWalt batteries yet. The “B” in DCS785B means “bare tool”: no battery or charger. Adding high-capacity batteries adds a lot to the cost.
• Choose a corded saw if your miter saw lives on a stand in a garage or shop next to an outlet. A corded 12-inch saw gives you similar capacity with no battery to charge.

The rest of this guide explains the details behind that advice, so you can be sure it fits your work.

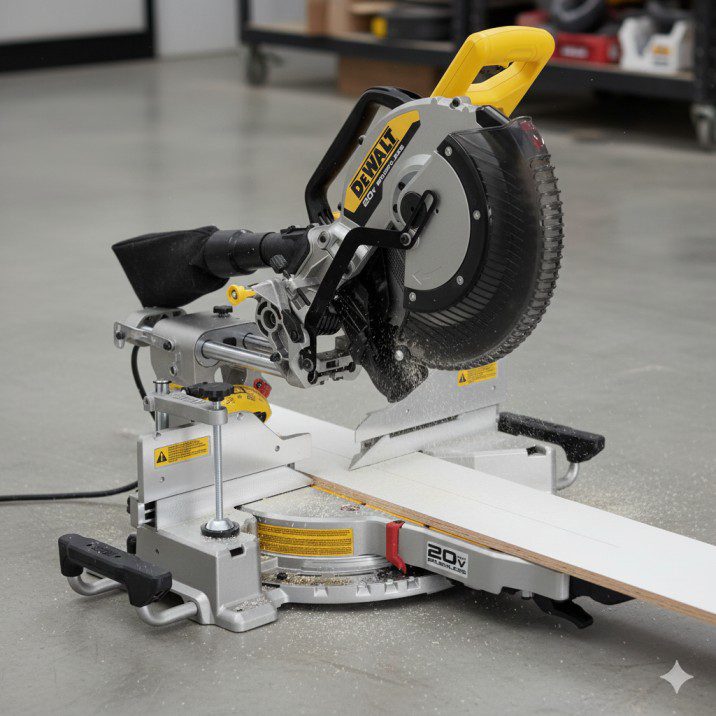

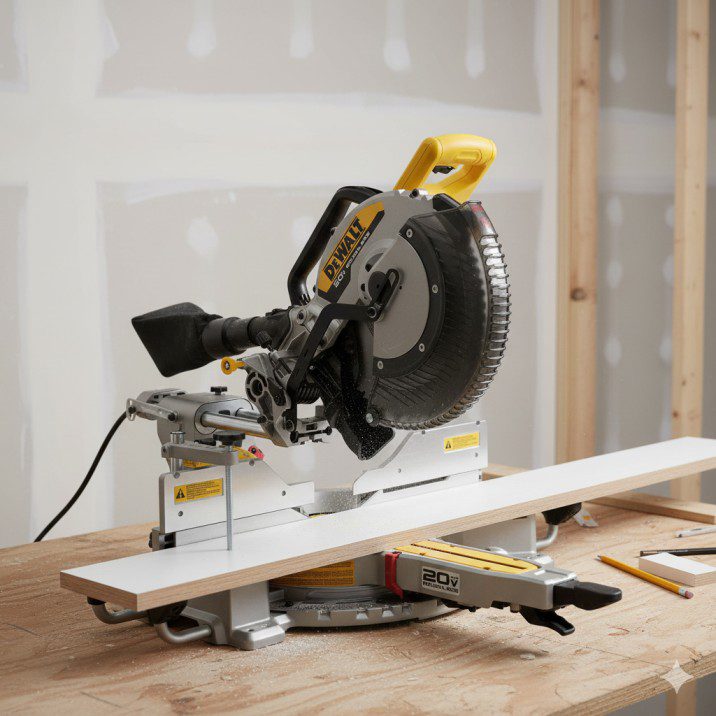

What Is the DeWalt DCS785B?

The DCS785B is DeWalt’s 20V MAX XR 12-inch double bevel sliding miter saw, sold as a tool only. Let’s break that long name into plain English.

• 20V MAX XR: it runs on DeWalt’s 20-volt battery platform. “XR” is DeWalt’s label for its higher-performance tools.
• 12-inch: it uses a 12-inch blade, which gives more cutting capacity than a 10-inch saw.
• Double bevel: the head tilts both left and right. You can make bevel cuts in either direction without flipping the board, which is a big help on crown and baseboard.
• Sliding: the head slides forward and back on rails, so it can cut boards much wider than the blade could reach on its own.
• Miter saw: the saw pivots left and right for angled crosscuts, like the corners of a picture frame or trim.

According to DeWalt’s listing, this is its largest-capacity 20V MAX miter saw and its first 12-inch miter saw that works with the full range of 20V MAX and FLEXVOLT batteries. There is also a kit version, the DCS785WW1, which includes extras. Check the listing to see exactly which battery and charger come with it.

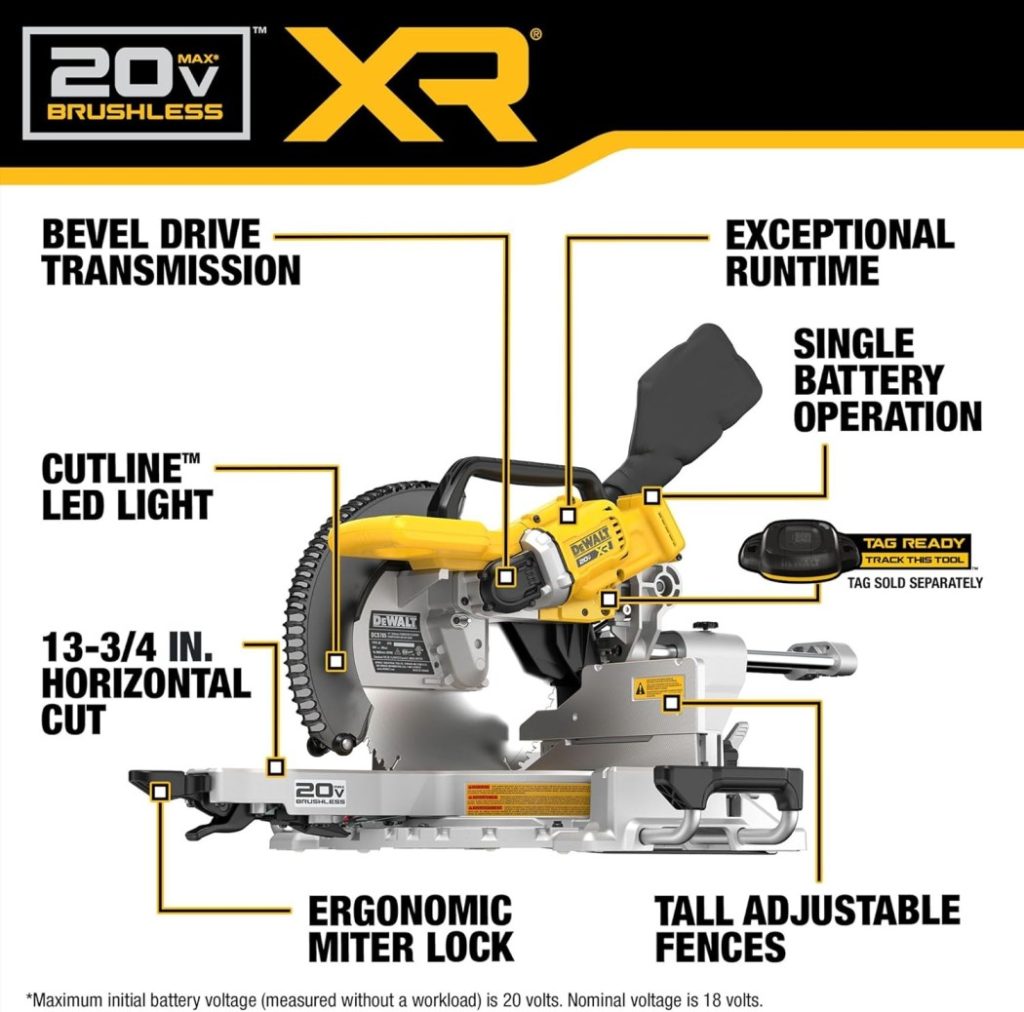

Key Specs at a Glance

These specs come from the DCS785B’s Amazon listing. Where a figure is a manufacturer claim, we say so.

Feature	DCS785B	What it means for you
Blade size	12 inch (60-tooth carbide blade listed)	Wide crosscuts and tall cuts
Power	20V MAX; also accepts FLEXVOLT batteries	Shares batteries with many DeWalt tools
Horizontal cut	Up to 14 inches	Crosscuts wide boards and shelving
Baseboard (vertical)	Up to 6-1/2 inches	Cuts tall baseboard standing up
Crown (nested)	Up to 6-1/2 inches	Handles large crown molding
Bevel	Double (left and right)	No flipping boards for opposite bevels
Braking	Regenerative braking	Recovers energy when the blade stops (per DeWalt)
Dust	Up to 97% capture with a vacuum (per DeWalt)	Cleaner work area when connected to an extractor
Cut line	Cutline blade positioning system	Shows where the blade will cut
Listed dimensions	33.81″ L × 23.81″ W × 19.5″ H	Needs a sturdy stand or bench
Listed weight	About 65.9 lb	Portable, but a two-hand lift

A few specs that buyers often want, like exact miter and bevel ranges, were not shown on the Amazon listing when we checked. Check the manual or the box for those before you rely on a particular angle.

Cut Capacity, Explained in Plain English

Capacity numbers can be confusing, so here is what each one means in real projects.

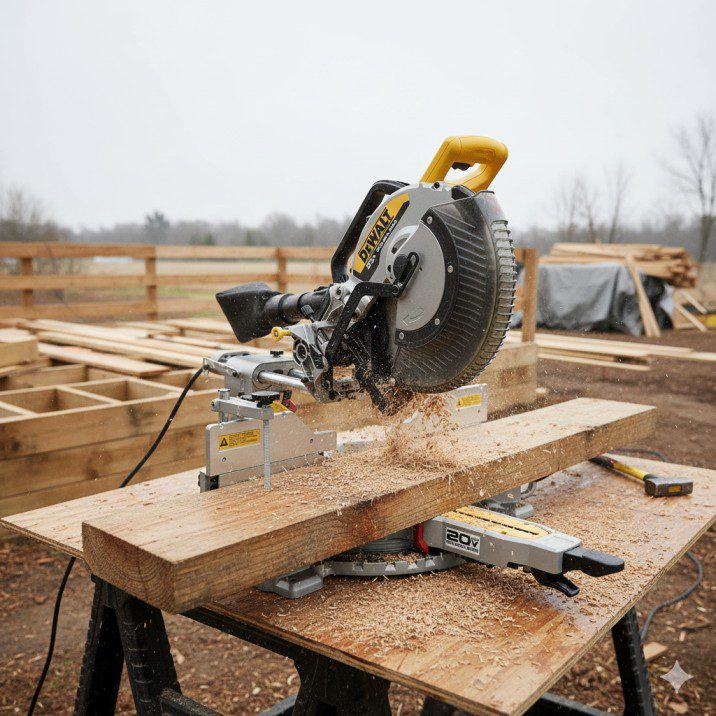

14-inch horizontal cut

This is how wide a board the saw can crosscut when it is lying flat, thanks to the sliding head. Fourteen inches covers 2×12 lumber and most shelving boards in a single pass. If you build shelves, stair treads or wide frames, this matters.

6-1/2-inch baseboard, standing up

Baseboard is often cut standing vertically against the fence for clean miters. A 6-1/2-inch vertical capacity means the saw can handle tall baseboard profiles that a smaller saw cannot.

6-1/2-inch crown, nested

“Nested” means the crown molding sits at an angle between the fence and the table, just as it sits between the wall and ceiling. Cutting nested is easier for many people than calculating compound angles. A 6-1/2-inch nested capacity covers large crown.

Why 12 inches instead of 10?

A 12-inch blade gives you more height and reach. A 10-inch saw is lighter and its blades are cheaper, but you may need to flip boards or make two cuts on wide or tall stock. If you are unsure which size you need, our guide to the best sliding compound miter saws compares sizes in detail.

💡 Key insight: capacity is about the work you do most. If you mainly cut 2×4s and small trim, a 10-inch saw may be all you need. The DCS785B shines on wide boards, tall baseboard and big crown.

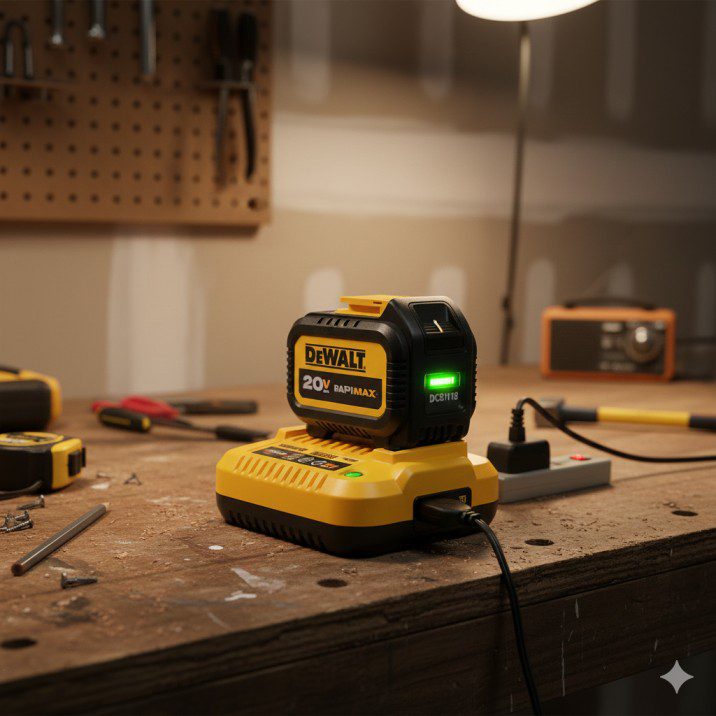

Batteries: 20V MAX vs FLEXVOLT, and Runtime

Batteries are the heart of the cordless question. Here is what you need to know.

Which batteries does it take?

The DCS785B accepts DeWalt 20V MAX batteries and DeWalt FLEXVOLT batteries. FLEXVOLT packs are larger, higher-capacity batteries that work in both 20V and 60V tools. In general, bigger amp-hour (Ah) batteries give you more cuts per charge, and high-output packs can help a saw keep its speed in tough cuts.

What about runtime?

DeWalt says the saw delivers up to 371 cuts in 3-1/4-inch MDF base molding and up to 153 cuts in pressure-treated 4×4 lumber per charge. Those figures come from DeWalt’s own testing with a specific battery, as noted in its listing’s fine print. Your results will depend on the battery you use, your blade, the wood and how you cut. Treat them as a guide, not a promise.

Regenerative braking

DeWalt describes the saw’s regenerative braking with the slogan “cut, capture, charge.” The idea is that some energy is recovered when the blade brakes to a stop, which helps stretch runtime. A bevel gear transmission is also designed to reduce power loss between the motor and blade.

Battery type	Typical use	Pros	Cons
20V MAX compact (2–3Ah)	Drills and drivers	Light, cheap	Few cuts per charge on a big saw
20V MAX XR (5Ah)	General cordless tools	Good balance of weight and runtime	May need swapping on long jobs
FLEXVOLT (6–12Ah)	Saws and high-draw tools	Most runtime and power	Heavier and more expensive

Dust Collection, Cutline and Accuracy Features

A miter saw is only as good as the cuts it makes and the mess it leaves behind. The DCS785B has three features aimed at both.

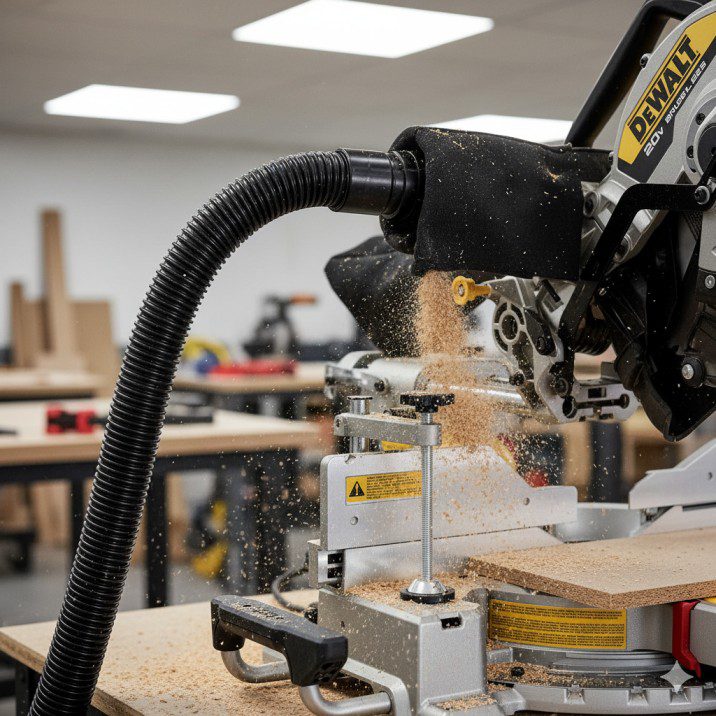

Dust collection and wireless tool control

DeWalt says the saw captures up to 97% of dust when used with a vacuum. It includes a dust bag and a vacuum adaptor, and it has integrated wireless tool control, which can switch on a compatible DeWalt vacuum when you pull the trigger (the vacuum is sold separately). That matters indoors, where miter saw dust settles on everything.

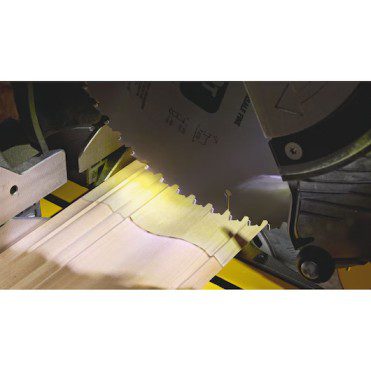

Cutline blade positioning system

Instead of a laser, DeWalt uses its cutline blade positioning system, which shows where the blade will cut without needing adjustment. Many users find this style easier to trust than a laser, because it does not drift out of alignment. Learn more about laser guides and shadow lines in our guide to saws with laser guides.

Getting the most accurate cuts

• Check the fence is square to the blade when the saw arrives.
• Use a quality blade with plenty of teeth for trim. Our guide to the best saw blade for a miter saw explains tooth counts.
• Support long boards on both sides so they do not sag or lift during the cut.
• Let the blade reach full speed before cutting, and let it stop before raising the head.

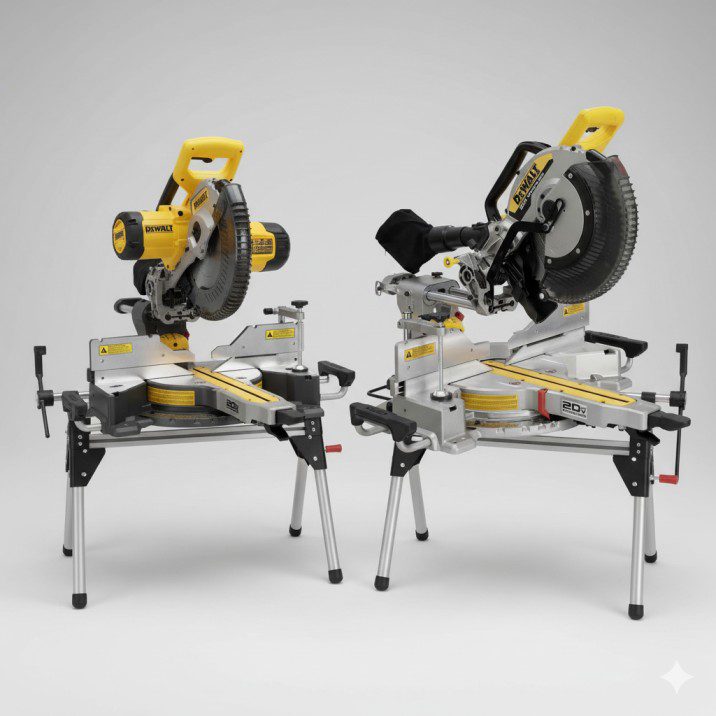

DCS785B vs Corded DWS780 (and Other Options)

The most common alternative is DeWalt’s corded DWS780, a 12-inch double bevel sliding miter saw that has been a favorite on job sites for years. Here is how they compare, based on their listings.

Feature	DCS785B (cordless)	DWS780 (corded)
Power	20V MAX / FLEXVOLT battery	15 amp, 120V
Blade	12 inch	12 inch
Bevel	Double	Double
Cut line	Cutline blade positioning system	Cutline system with XPS LED shadow line
Dust capture (claimed)	Up to 97% with vacuum	Over 75%
Runs where?	Anywhere, while the battery lasts	Near an outlet or generator
Batteries needed?	Yes (tool only)	No

The choice really comes down to where you work. If you are on decks, roofs, remodels without power, or you are tired of tripping over cords, the DCS785B is the more convenient tool. If your saw stays in a shop near an outlet, the DWS780 gives you similar capacity with no batteries to manage.

DeWalt also makes 60V FLEXVOLT miter saws. Those are aimed at heavier, all-day cutting. For many users who already own 20V tools, the DCS785B’s ability to use both 20V MAX and FLEXVOLT batteries is the main attraction.

Who Should Buy It (and Who Shouldn’t)

Great fit

• Trim carpenters and remodelers who move from room to room and want fewer cords on the floor.
• Deck builders working far from outlets.
• DeWalt 20V owners who already have several high-capacity batteries.
• DIYers renovating a house where power is not always available.

Probably not the best fit

• Shop-only woodworkers whose saw never leaves its stand.
• Buyers with no DeWalt batteries who would need to buy a whole battery system.
• Anyone who needs a lightweight saw; at about 66 pounds listed, it is a two-hand lift.

Pros and cons

👍 Pros	👎 Cons
12-inch capacity without a cord	Tool only: batteries and charger cost extra
Works with 20V MAX and FLEXVOLT batteries	Heavy for a “portable” saw
Double bevel for trim and crown	Runtime depends heavily on battery size
Strong dust collection with a vacuum (claimed)	Some specs, like miter range, not shown on the listing
Cutline system needs no alignment	Corded saws offer similar capacity for less if you have power

Setting It Up: First-Day Checklist

A big miter saw rewards a careful setup. Here is what to do before your first real cut.

1. Unbox and inspect. Check for shipping damage and make sure the blade, dust bag and vacuum adaptor are included.
2. Mount it securely. Bolt it to a sturdy bench or a miter saw stand. A sliding saw must not tip or rock.
3. Charge your batteries fully. Start with fresh packs so the saw runs at full performance.
4. Check the fence and bevel stops. Use a reliable square to confirm 90° and 45° settings. Adjust if needed using the manual.
5. Connect dust collection. Attach the bag or a vacuum hose. Set up wireless tool control if you have a compatible vacuum.
6. Make test cuts. Cut a scrap board and check it with a square. Then make a test miter and check that two pieces form a tight corner.
7. Read the safety section of the manual, especially about the slide and blade guard.

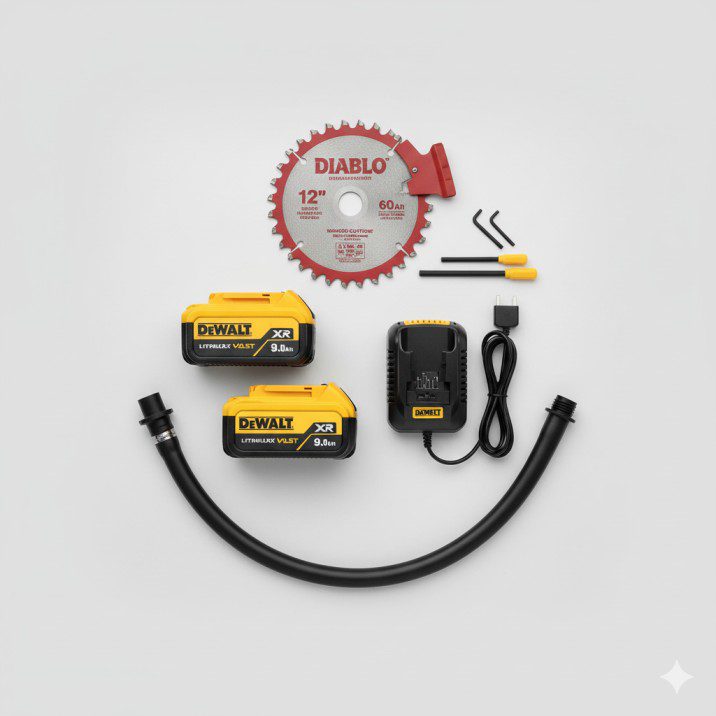

The Saw and Accessories Worth Buying

Here is the DCS785B along with the corded alternative and the accessories that make it work best. Specs come from the Amazon listings. We do not show prices because they change often.

Common Mistakes (and How to Fix Them)

Pro Tips

• 💡 Label your batteries and rotate them so they age evenly.
• 💡 Upgrade the blade for trim. An 80-tooth blade gives cleaner miters than a general-purpose blade.
• 💡 Use a stop block for repeated lengths, like deck boards or baseboard pieces.
• 💡 Keep the slide rails clean. A quick wipe keeps the head gliding smoothly.
• 💡 Store batteries indoors in cold weather; lithium-ion packs work best at moderate temperatures.
• 💡 Protect the saw with a cover when it is not in use, especially on job sites.

Real-Life Examples

These scenarios reflect situations woodworkers and contractors commonly describe online. They are illustrative, not specific people.

Frequently Asked Questions

Your DeWalt DCS785B Buying Checklist

• I will often cut away from outlets, or I want fewer cords
• I own (or will buy) high-capacity 20V MAX or FLEXVOLT batteries
• I need 12-inch capacity for wide boards, baseboard or crown
• I have a sturdy stand or bench to mount it on
• I understand it is tool only, or I chose the kit
• I will check fence squareness and make test cuts on day one
• I plan to use a vacuum or dust bag
• I will upgrade to a fine finish blade for trim work

The DeWalt DCS785B brings 12-inch, double bevel sliding capacity to DeWalt’s 20V MAX battery system. If you already own the batteries and work where power is a hassle, it can make your days simpler and your job sites tidier. If your saw never leaves the shop, a corded 12-inch saw may be the smarter buy. Either way, pair it with a good blade and a solid stand. For more choices, see our guide to the best sliding compound miter saws.
