Best Electric Motor for a Table Saw: Induction vs Universal vs Brushless (and How to Replace One)

Most people never think about their table saw’s motor until something goes wrong. The saw bogs down in thick oak. It trips the breaker every time you start it. Or it simply hums and refuses to spin. Suddenly you are reading about frames, capacitors and RPM and wondering what any of it means.

Here is the good news. Table saw motors are simpler than they look. There are only a few types, and each one suits a certain kind of saw and user. Once you understand them, choosing a new saw or a replacement motor becomes straightforward. This guide covers how each motor works, what the numbers on the label mean, how much power you need, and how to pick a replacement that fits and lasts.

In this article

1. The 4 Types of Table Saw Motor
2. Table Saw Motor Types Compared
3. Which Motor Is Best for You?
4. How Much Horsepower Do You Really Need?
5. How to Read a Motor Label (Nameplate)
6. Choosing a Replacement Motor, Step by Step
7. Signs Your Table Saw Motor Is Failing
8. Motor Care and Maintenance
9. Saws and Motors Worth Considering
10. Common Mistakes (and How to Fix Them)
11. Pro Tips
12. Real-Life Examples
13. Frequently Asked Questions
14. Your Table Saw Motor Checklist

The 4 Types of Table Saw Motor

Every table saw uses one of four motor types. Knowing which one your saw has explains a lot about how it sounds, how it feels and how long it will last.

1. Universal motors (jobsite and benchtop saws)

Universal motors are small, light and powerful for their size. They use carbon brushes to carry electricity to the spinning part of the motor. In most jobsite saws, the blade mounts right on the motor shaft, which is called direct drive.

Why they are used: they are compact and cheap to build, and they plug into any household outlet. The trade-offs: they are loud, they slow down more under heavy load, and the brushes wear out and must be replaced eventually. For DIY work, trim, plywood and occasional hardwood ripping, a 15-amp universal motor is plenty.

2. Single-phase induction motors (contractor, hybrid and cabinet saws)

Induction motors have no brushes. They use magnetism to spin the rotor, which makes them very durable and much quieter. They drive the blade with one or more belts, which also absorb vibration. Most use a capacitor, a small electrical part that gives the motor an extra kick to get started.

Induction motors hold their speed when you push thick wood through, and a well-kept one can run for decades. They are heavier and more expensive, and larger ones (3 HP and up) usually need a 240-volt circuit.

3. Three-phase induction motors (commercial and industrial saws)

Three-phase motors are the simplest and toughest of all. They need three-phase power, which is common in commercial buildings but rare in homes. They start smoothly, run efficiently and need very little maintenance. If your building has three-phase power and you are buying a big saw, they are an excellent choice. See our guide to commercial table saws for more.

4. Brushless DC motors (cordless saws)

Brushless motors use electronics instead of brushes to switch the power. They are efficient, which matters when you run on a battery, and they last longer than brushed motors. You will find them in cordless jobsite saws. They are great for portability, but battery capacity limits how much heavy ripping you can do before a recharge. Our best cordless table saw guide covers these in detail.

Table Saw Motor Types Compared

Feature	Universal	Single-phase induction	Three-phase induction	Brushless (cordless)
Found in	Benchtop, jobsite saws	Contractor, hybrid, cabinet	Industrial, commercial	Cordless jobsite saws
Drive	Direct	Belt	Belt	Direct
Noise	Loud	Quiet	Quiet	Moderate
Weight	Light	Heavy	Heavy	Light
Life span	Good, brushes wear	Excellent	Excellent	Very good
Power under load	Slows more	Steady	Very steady	Good, battery-limited
Power supply	120V	120V or 240V	Three-phase supply	Battery

Which Motor Is Best for You?

There is no single “best” motor for everyone. The best motor is the one that fits how and where you work. Use these simple rules.

• You move your saw around or store it after each use: choose a universal-motor jobsite saw. Light weight beats everything else here.
• You have a permanent shop corner and want quiet, smooth cuts: choose an induction-motor hybrid or cabinet saw. Look for a TEFC motor.
• You run a business or cut thick hardwood all day: choose a 3 to 5 HP induction motor, three-phase if your building has it.
• You work where there is no power: choose a brushless cordless saw and spare batteries.

💡 Key insight: for a home shop, the jump from a universal motor to an induction motor matters more than the jump from 1¾ HP to 3 HP. The quieter, steadier belt drive changes how the saw feels in every cut.

Still deciding which kind of saw to buy? Our table saw buying guide walks through every saw type step by step.

How Much Horsepower Do You Really Need?

Horsepower is the most misunderstood number on a table saw. Many boxes print “max HP” or “peak HP,” which describes a brief burst at start-up, not real working power. Ignore those. For induction motors, look at the continuous HP rating. For jobsite saws, look at amps: almost all good ones use 15-amp motors.

Continuous power	Typical saw	What it handles well	Power needed
15 amp universal	Jobsite saw	Plywood, 2-by lumber, occasional hardwood	120V, ideally 20A circuit
1½–1¾ HP induction	Contractor or hybrid saw	Everyday hobby work, ¾” hardwood, sheet goods	120V (some 240V)
2 HP induction	Hybrid saw	Regular hardwood ripping at a steady pace	Often 240V
3 HP induction	Cabinet saw	Thick hardwood, daily furniture work	240V
5 HP induction	Commercial cabinet saw	All-day production, thick stock, dado stacks	240V or three-phase

More power is not always better. A 3 HP saw is wasted if you mostly cut plywood, and it may need electrical work you do not want. A sharp blade with the right tooth count often makes a bigger difference than extra horsepower. See our best table saw blade guide before you upgrade a motor to fix slow cuts.

How to Read a Motor Label (Nameplate)

Every induction motor has a metal nameplate full of numbers. Here is what the important ones mean, in simple terms.

• HP: the continuous horsepower rating.
• Volts: the voltage it runs on, such as 115/230V (dual voltage) or 230V only.
• Amps (FLA): the current it draws at full load. Use this to size the circuit.
• RPM: motor speed. Most table saw motors run at about 3,450 RPM. Some use 1,725 RPM with different pulleys, so match what you have.
• Phase: single-phase or three-phase.
• Frame: a code such as 56, 145T or a saw-specific mount. It defines the mounting and shaft size.
• Enclosure: TEFC (sealed, good for dust) or ODP (open drip-proof, lets dust in).
• SF (service factor): how much extra load the motor can handle for short periods. 1.15 gives a little more headroom than 1.0.
• Rotation: the direction it spins, and whether it can be reversed by rewiring.

Choosing a Replacement Motor, Step by Step

If your saw’s motor has died, a replacement can bring a good saw back to life for far less than a new machine. The key is matching every important spec. Follow these steps.

1. Photograph the old nameplate. Write down HP, volts, amps, RPM, phase, frame, enclosure and rotation.
2. Check the mounting. Many contractor saws use a standard base, but some cabinet saws use saw-specific round or flange mounts. The new motor must bolt to the same mount.
3. Measure the shaft. Note the diameter (often ⅝” on 56-frame motors) and length, and whether it has a keyway.
4. Confirm the rotation. The blade must spin toward you at the front of the saw. A reversible motor makes this easy to set.
5. Match the RPM and pulleys. A different RPM changes the blade speed. Keep the same RPM unless you also change pulleys correctly.
6. Choose TEFC if you can. It keeps dust out and lasts longer in a woodshop.
7. Check the switch and wiring. A bigger motor may need a bigger switch, a heavier cord or a new circuit. When in doubt, ask an electrician.
8. Contact the saw maker. Many manufacturers sell exact replacement motors, which is the simplest option for popular saws.

Signs Your Table Saw Motor Is Failing

Motors usually give warnings before they quit. Catching them early can save the motor, or at least save you from a mid-project failure.

• The motor hums but will not spin: often a bad start capacitor or a sticking centrifugal switch on induction motors. Unplug the saw before inspecting.
• It trips the breaker on start-up: could be a weak circuit, a long thin extension cord, or a failing motor.
• Heavy sparking at the brushes (universal motors): the brushes may be worn short and need replacing.
• Burning smell or smoke: stop immediately. This usually means overheating or failing windings.
• Grinding or squealing: worn bearings, or a belt that is slipping.
• Slows badly on easy cuts: check the blade first, then the belt tension, then the motor.

Many of these problems are cheap to fix, such as a capacitor, brushes or a belt. A burned-out winding usually means a replacement motor.

Motor Care and Maintenance

A little care keeps a motor running for many years. None of these jobs take long.

• Blow out dust regularly with compressed air (wear eye protection), especially around cooling vents.
• Check brushes on universal motors once a year or when you notice extra sparking. Replace them in pairs.
• Inspect belts on induction saws for cracks and correct tension. A worn belt causes vibration and lost power.
• Keep the cord healthy. Replace damaged cords and avoid long, thin extension cords.
• Do not overload the motor. Feed at a steady pace that lets the blade keep its speed.
• Connect dust collection. Less dust in the cabinet means less dust in the motor. See our guide to table saw dust collection.

Saws and Motors Worth Considering

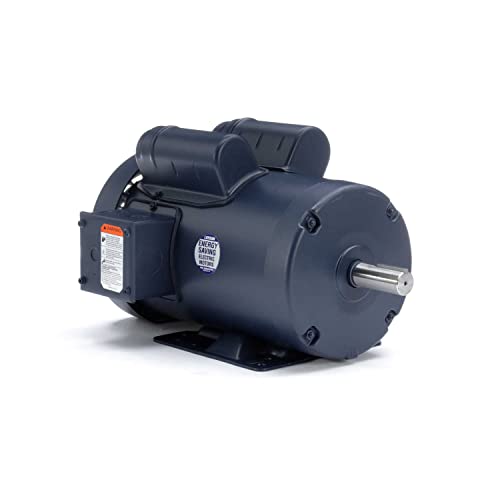

If you are shopping for a new saw, the motor type is one of the clearest ways to compare models. If you need a replacement motor, a direct-fit motor is the goal. Here are examples of each. Specifications come from the manufacturer listings on Amazon.

Common Mistakes (and How to Fix Them)

Pro Tips

• 💡 Run big saws on 240V when you can. A dual-voltage motor wired for 240V draws half the current, which means less strain on your wiring.
• 💡 Use a dedicated circuit. Keep the dust collector or vacuum on a separate circuit so the saw gets full power.
• 💡 Upgrade to a link belt on older contractor saws. Many owners say it cuts vibration noticeably.
• 💡 Keep spare brushes for a universal-motor saw, so a worn brush does not stop a project.
• 💡 Add a magnetic switch to older saws. It stops the saw restarting by itself after a power cut.
• 💡 Let the blade reach full speed before the wood touches it, every time.

Real-Life Examples

These are typical situations woodworkers describe in forums and community groups. They are illustrative, not specific people.

Frequently Asked Questions

Your Table Saw Motor Checklist

• I know which motor type fits how I work (portable, home shop, business, cordless)
• I am comparing continuous HP or amps, not “peak” HP
• My circuit is sized for the motor’s full-load amps
• For a replacement: HP, volts, phase and RPM match the original
• For a replacement: frame, mount, shaft and keyway match
• Rotation is correct, with the blade spinning toward me at the front
• I chose a TEFC motor for dust protection where possible
• I checked the blade and belt before blaming the motor

Choosing a table saw motor is really about matching the motor to your work. Light and portable means universal. Quiet and long-lasting means induction. Battery freedom means brushless. And if you are replacing a motor, matching the nameplate and mount is what makes the difference between a quick fix and a frustrating return. For help setting up your saw once it is running again, see our guide on how to align a table saw.
