I Tested the DeWalt DWE7480 — Here’s What Nobody Tells You

By Finlay Connolly  |  ProTableSawReviews.com

My First Week With the DW7480 Table Saw

I didn’t really plan to end up with this saw. I already had a bigger setup in the shop, but I needed something I could just throw in the truck without thinking about it. A guy I trust said he’d been running the DW7480 for a while, so I tried it.

First job with it was ripping plywood for a cabinet build. Nothing fancy, just straight cuts and repetition.

That was a while back now. I’ve had enough time with it that I can tell you where it genuinely shines and where it’ll frustrate you. Neither list is short.

Let me walk you through it.

Quick Specs

Specs look good on paper, but what matters is how it actually behaves under load.

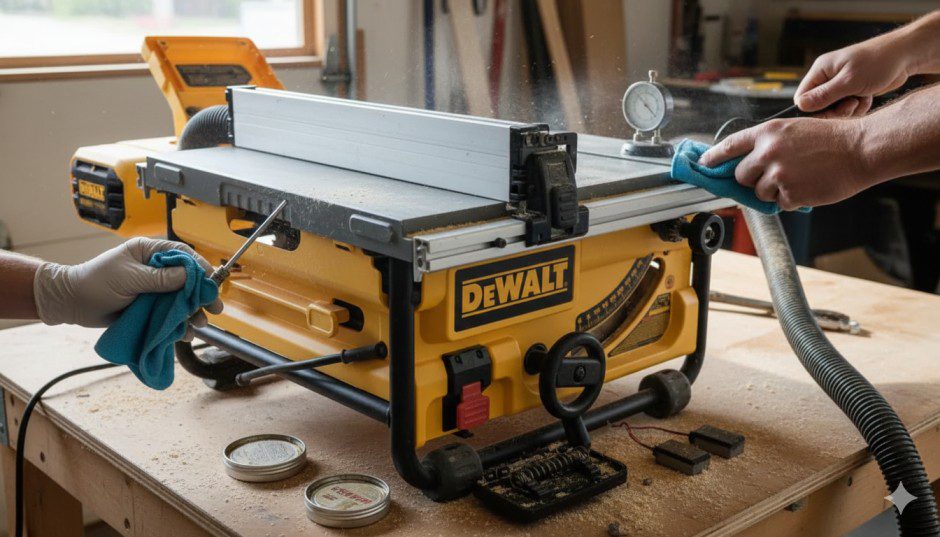

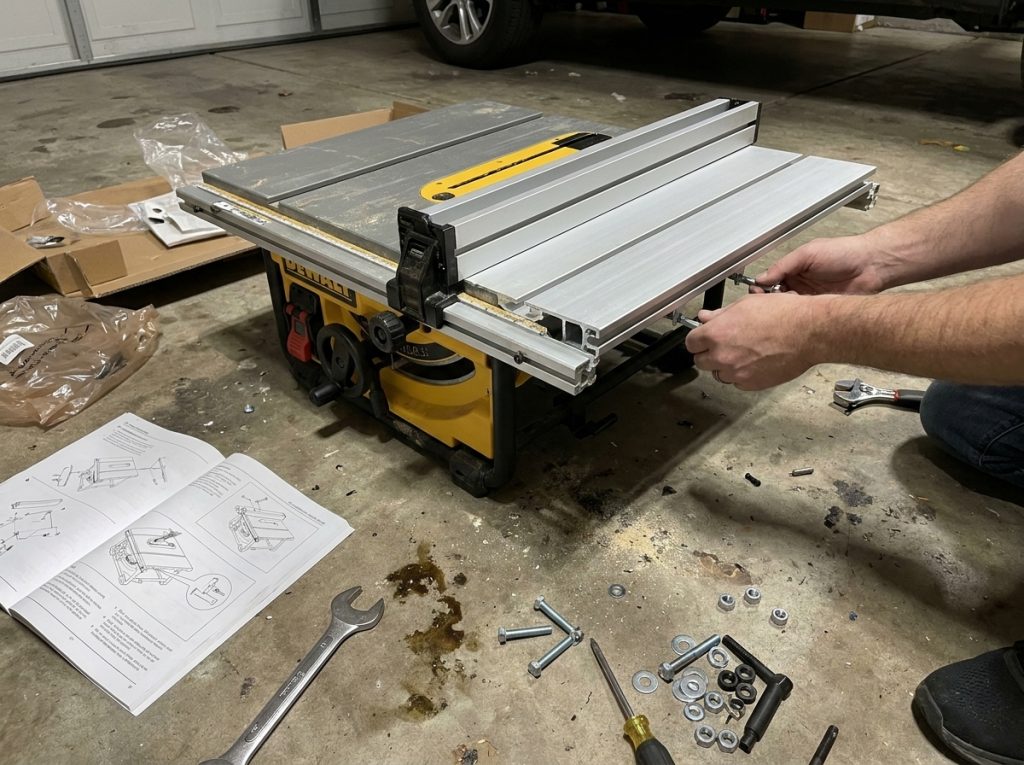

Setup — What to Expect Out of the Box

Setting it up wasn’t hard, but it wasn’t “plug and play” either. Took me a bit longer than expected just because I stopped to check alignment properly.

One thing I noticed right away — the fence wasn’t perfectly smooth out of the box. Not broken, just needed a small adjustment before it stopped catching.

The stand, if you buy the DW7480XRS version which includes it, locks up solid and the wheels roll fine on flat concrete. Rolling it over rough terrain is another story. The wheels are a bit small for that.

The blade guard is easy to remove and reinstall, which matters more than people think. On a jobsite you’re taking it off and putting it back on constantly. DeWalt made this reasonably painless.

Out of the box, the blade was fairly well aligned. I still went through the full alignment check — fence parallel to blade, miter slot parallel to blade, blade square to table — and only needed minor tweaks on the fence. That’s actually better than some saws I’ve set up at twice the price.

How the motor actually feels in real use

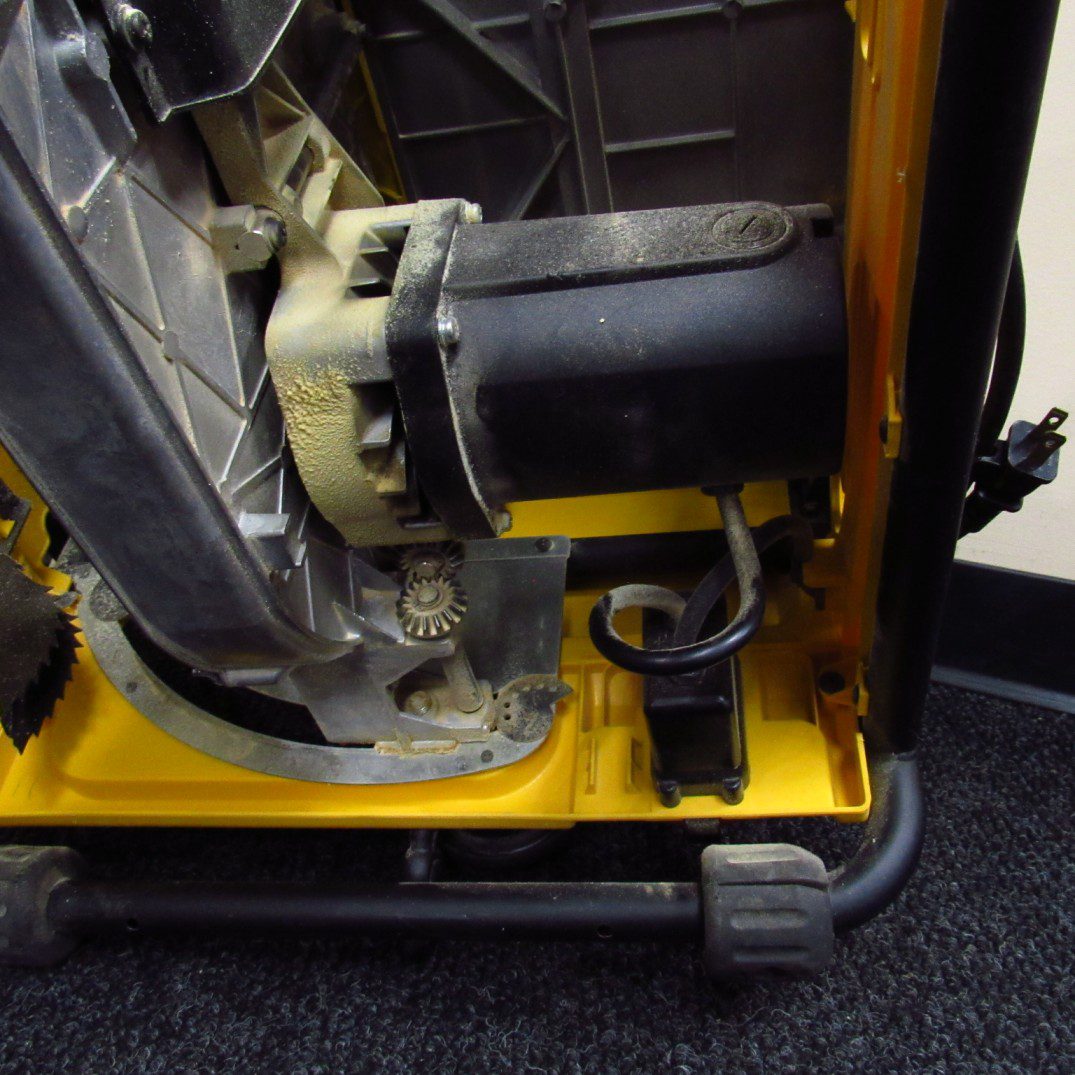

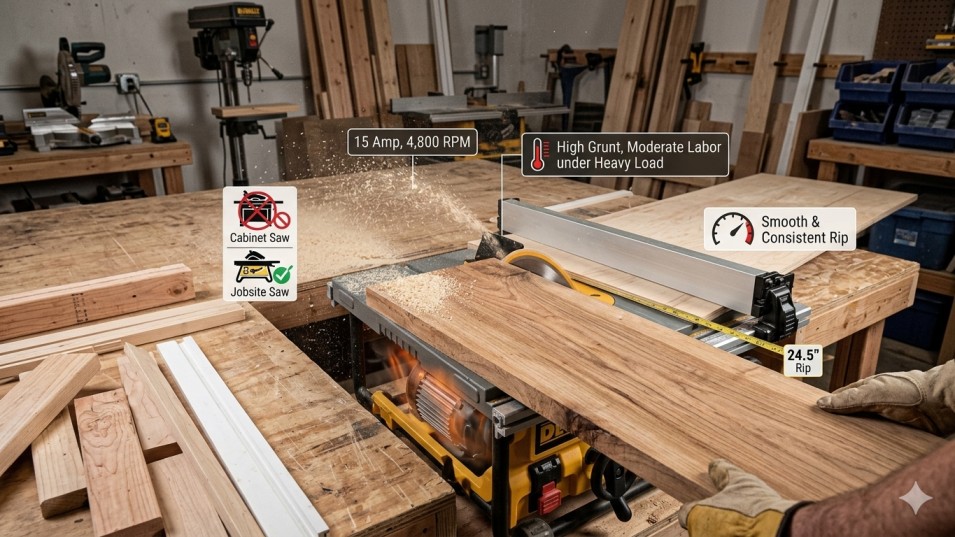

This is where the saw actually surprised me a bit. The 15-amp motor running at 4,800 RPM has real grunt to it. I’ve pushed it through some harder maple cuts and it didn’t feel weak or “cheap” like I expected from a portable saw. You can hear it working, but it doesn’t stall unless you really force it.

That said — you have to feed the wood at a reasonable rate. Push too fast and you’ll hear the motor labor. It recovers quickly, but it’s not a cabinet saw. It knows its limits and so should you.

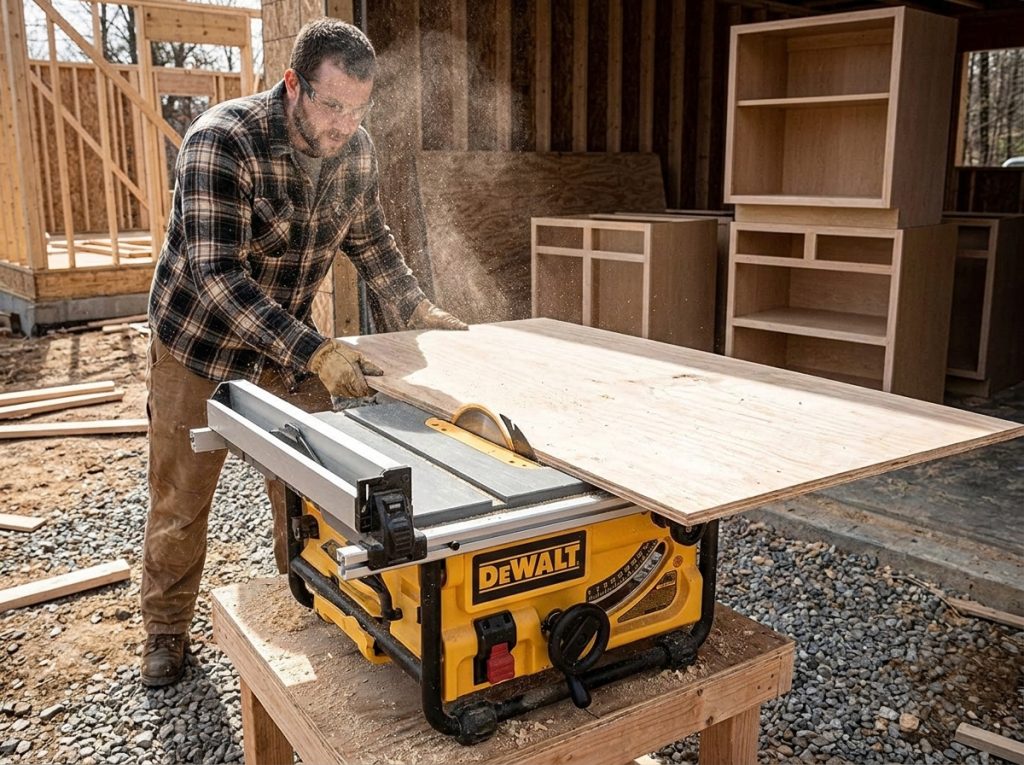

Ripping 3/4-inch plywood is where this thing is in its element. Smooth, fast, consistent. Sheet goods are genuinely easy on this saw. The 24.5-inch right-side rip capacity means you can break down a full sheet, which not every portable saw can claim.

Hardwood ripping is fine for occasional use. If you’re doing production furniture work, you’ll outgrow it. For a contractor doing trim, built-ins, or site cuts on framing lumber — more than enough.

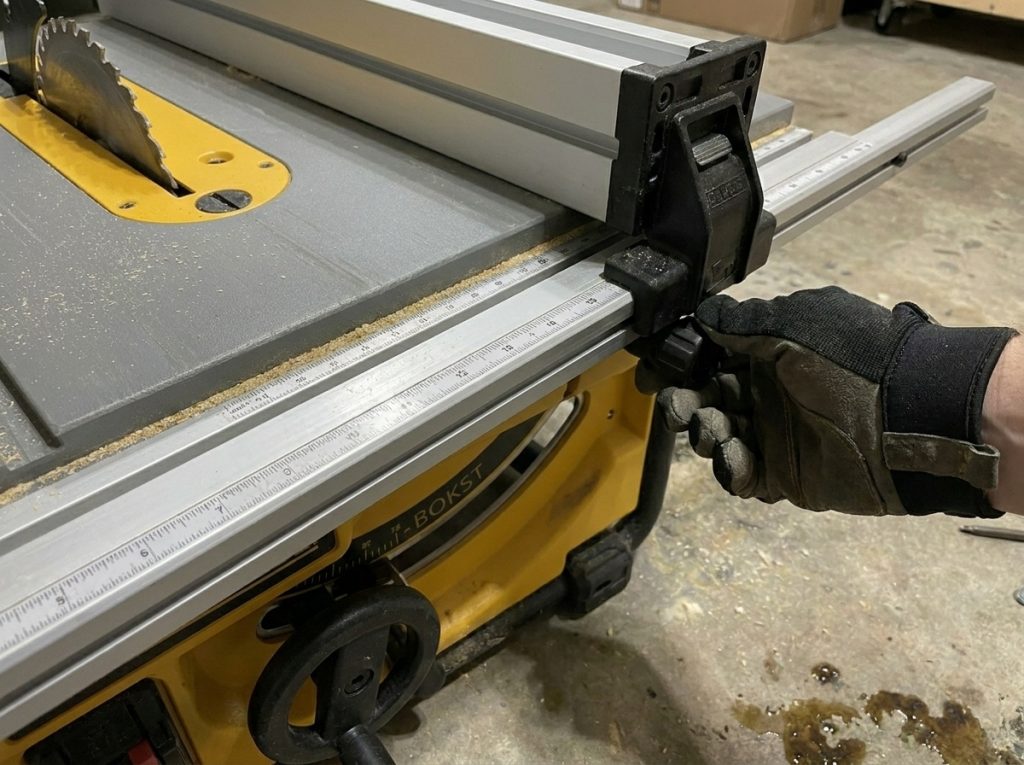

The Fence — Good, But Not Great

The rack-and-pinion fence system is one of the selling points DeWalt markets. And honestly… it works. The fence locks parallel and doesn’t move once it’s set. For a portable saw, that’s better than average.

The fence is good… but not perfect. There’s a slight looseness when you’re adjusting it slowly, like it has a tiny bit of hesitation before locking in.

Once it’s locked, it doesn’t move though. That part is solid.

The scale is readable and reasonably accurate. I still verify with a tape measure for critical cuts — old habit — but the scale doesn’t lie to you the way some cheap fence systems do.

Lock-up is positive with the cam-action lever. No creep, no drift after locking. That part I have no complaints about.

The fence doesn’t extend to the left side by default. The left-side rip is 12 inches, which covers most things you’d want to do on the left, but it’s worth knowing upfront.

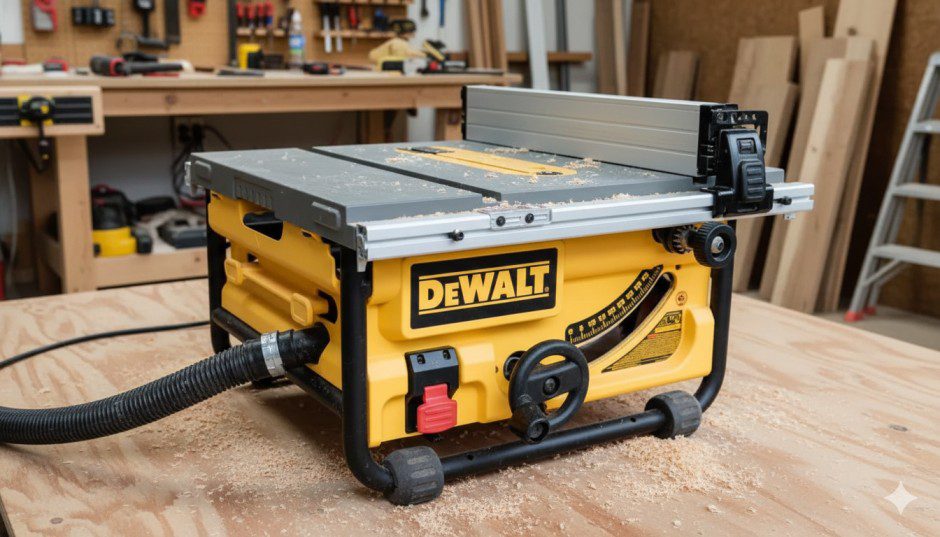

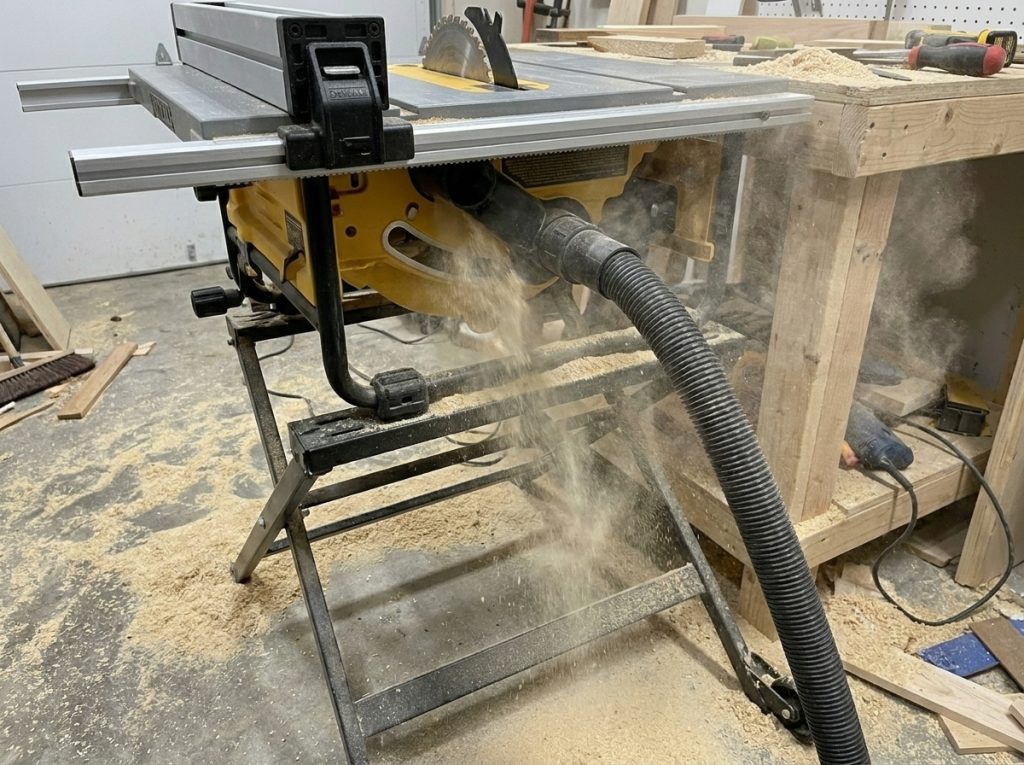

Dust collection (this part gets old fast)

Dust collection is honestly the one thing that gets annoying fast.

Even with a shop vac hooked up, you still end up with dust everywhere after a few plywood cuts. Not dangerous, just messy in a way you notice at the end of the day when everything is covered in fine dust.

Some guys drill an additional port lower on the cabinet. I haven’t done it yet but I’ve thought about it more than once.

If you’re working indoors or in a shared shop, budget for a decent shop vac and accept that you’ll still be doing more cleanup than you’d like. If you’re working outside on a construction site, it probably won’t bother you.

Maybe it’s just me, but I think at $450 they could’ve done better here. Most of the competition at this price point has the same issue, to be fair. Just don’t expect miracles.

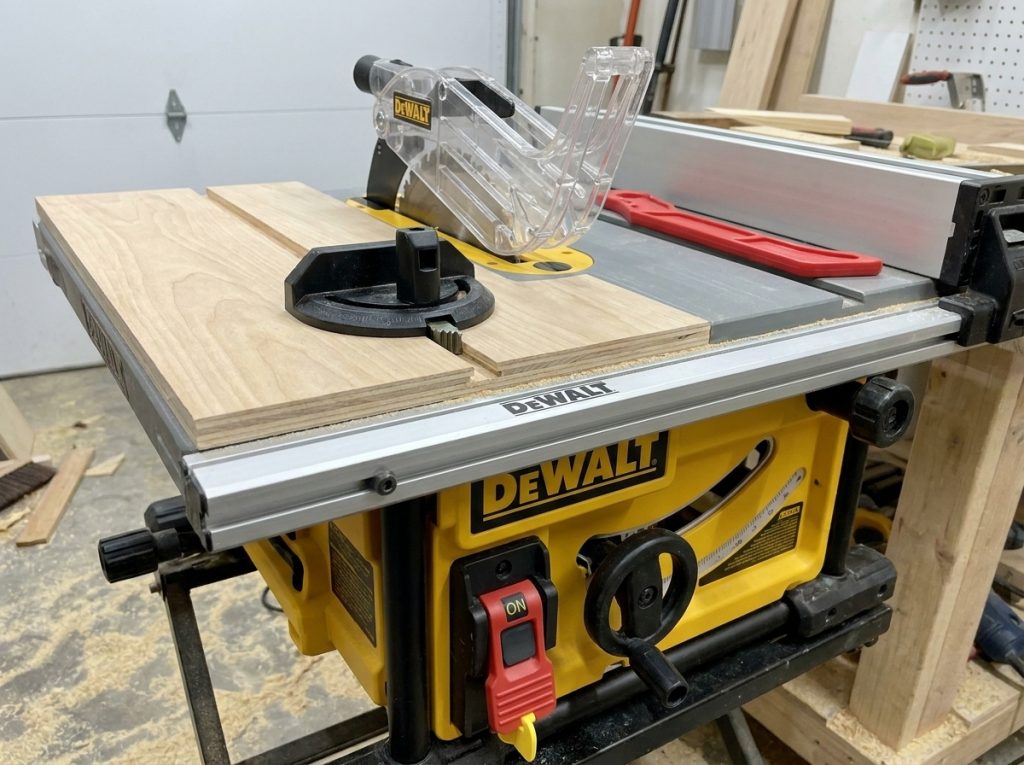

Safety Features — The Stuff That Actually Matters

The riving knife is actually one of the better parts of this saw. It stays aligned properly, which you appreciate more after you’ve used cheaper saws that don’t.

The blade guard is the standard transparent plastic type. It’s functional. I remove it more often than I probably should for certain cuts, but it reinstalls cleanly and doesn’t interfere badly when it’s on.

Anti-kickback pawls are included and they work. I’d still recommend a push stick for narrow rips — there’s one included in the box actually, though it’s the cheap flat plastic kind. Worth buying a proper one.

The blade brake on the power switch cuts the saw off cleanly. No coasting for 10 seconds like some cheaper saws. When you hit the switch, it stops. That matters when something unexpected happens.

Cut Quality — What I Actually Got

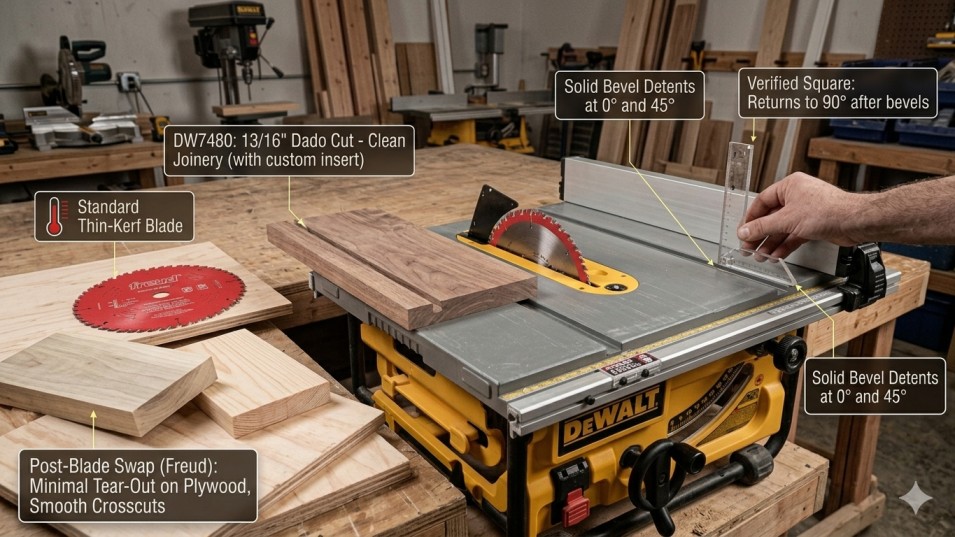

With the stock blade, the cuts are okay — nothing special. Not exceptional. The blade that ships with it is adequate for construction work but you’d want to upgrade it for furniture or finish carpentry. I swapped in a Freud thin-kerf blade fairly early on and the difference was noticeable.

The moment I swapped the blade, though, it felt like a different machine. Cleaner edges, less tearout, less sanding afterward.

Dado cuts: the DW7480 accepts a dado stack up to 13/16 inch wide. That’s enough for most joinery. The arbor length allows it, and the table insert that comes with the saw has a pre-cut opening for dadoes — though you may want to make a dedicated zero-clearance insert for cleaner dado cuts.

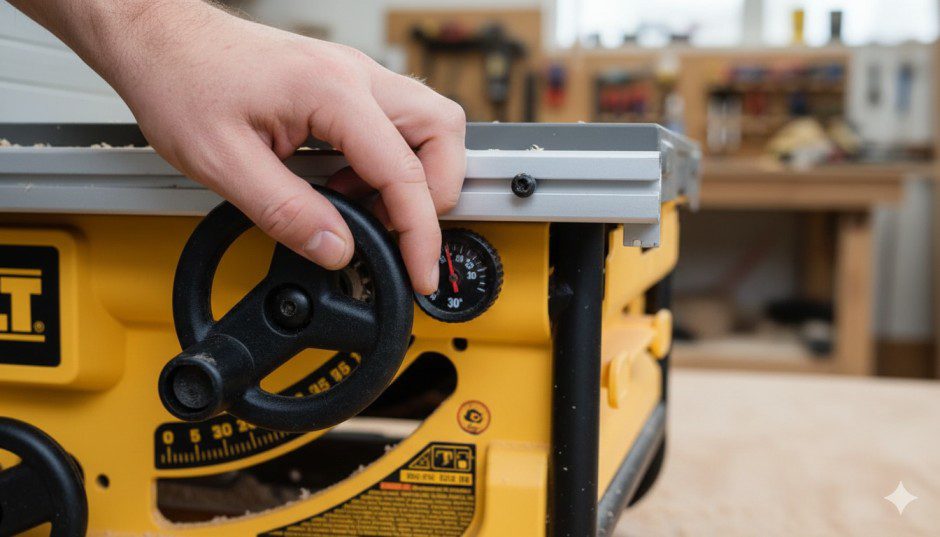

Bevel cuts at 45 degrees are fine. The detents at 0 and 45 are solid. I checked square at 90 after multiple bevel cuts and it returned to true without adjustment. That’s the sort of thing that matters on a jobsite when you’re moving fast.

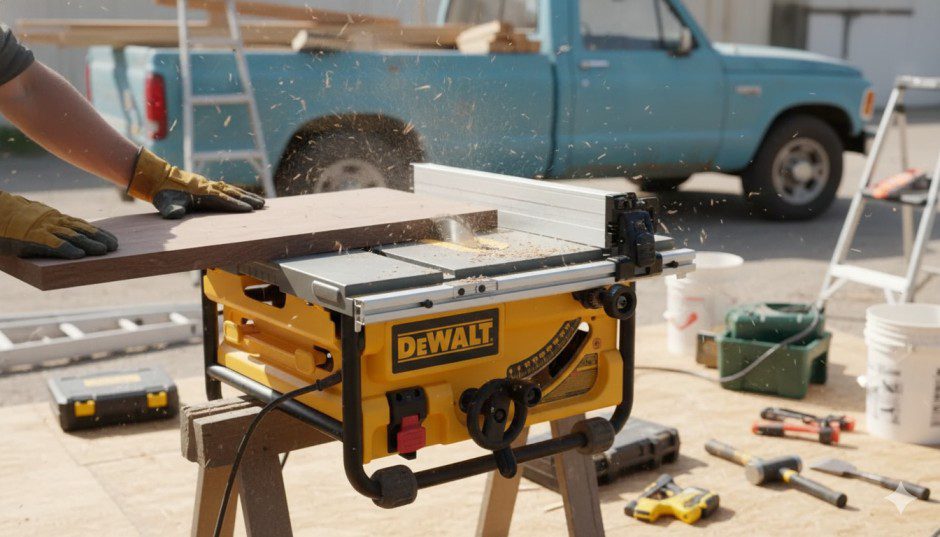

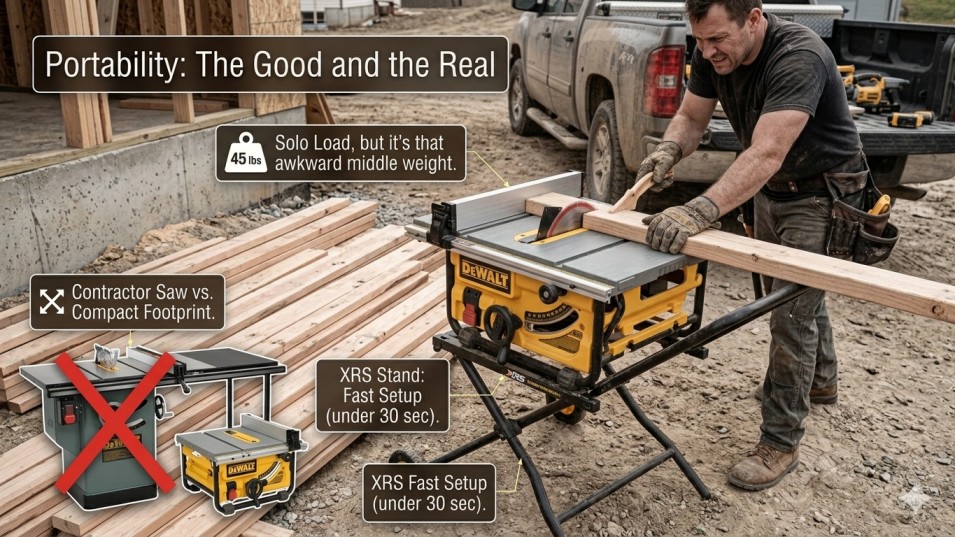

Portability: The Good and the Real

It’s not heavy enough to be a problem, but not light enough that you forget about it either.

It’s kind of in that awkward middle where you carry it once and don’t complain… but you also wouldn’t want to carry it all day.

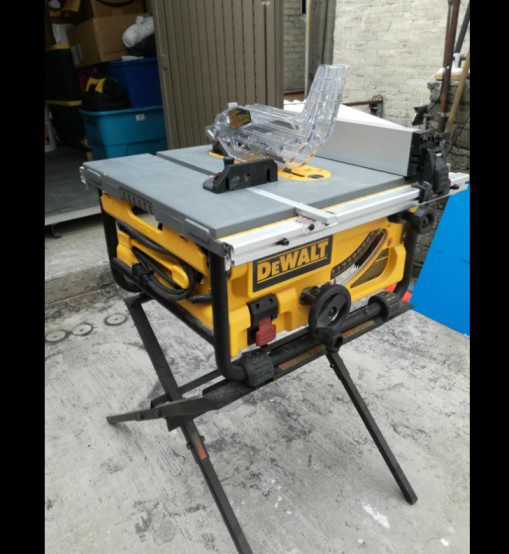

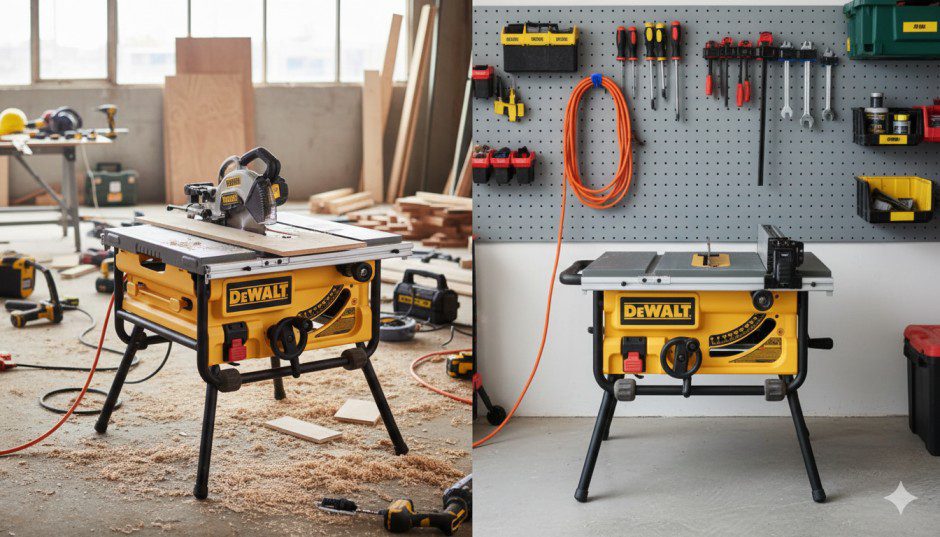

The folding stand on the XRS version helps a lot. Sets up in about 30 seconds, folds back down easily. I’ve set this saw up on probably 40 or 50 different jobsites now and the routine becomes second nature.

The compact footprint means it fits in a truck bed without dominating the space. If you’ve ever tried moving a contractor saw around, you’ll appreciate that immediately.

One minor gripe — there’s no good onboard storage for the blade guard, fence, or miter gauge when you’re transporting. You end up with loose parts rattling around the truck or rigging up some improvised solution. A few molded storage spots would’ve been nice.

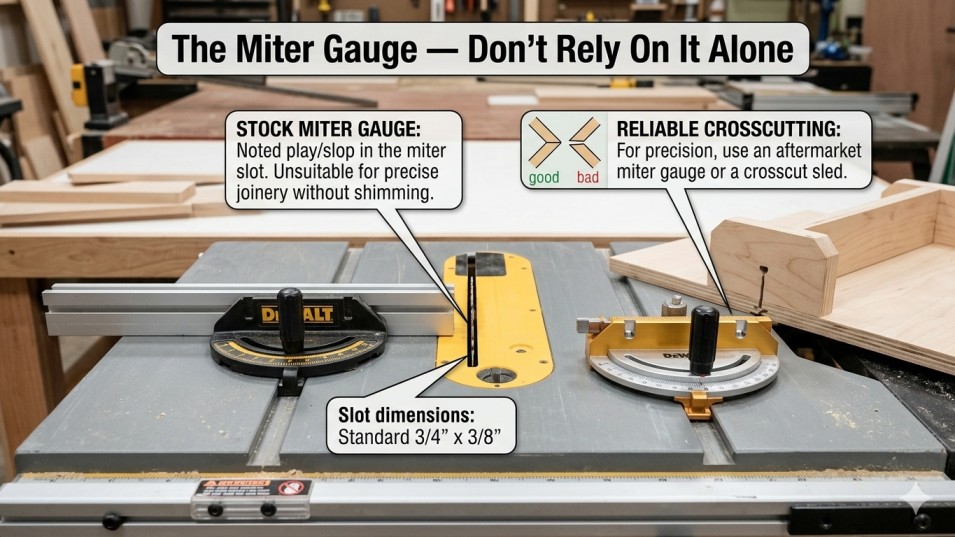

The Miter Gauge — Don’t Rely On It Alone

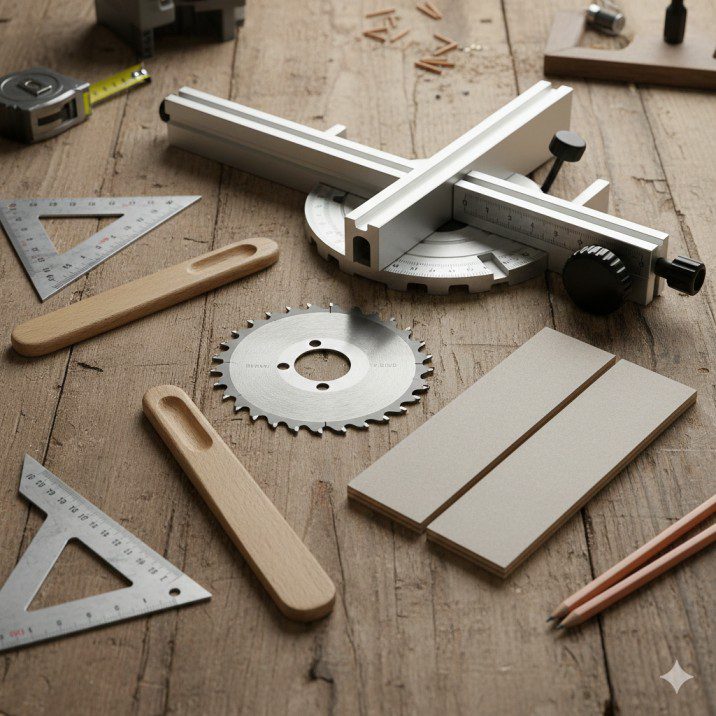

The included miter gauge is basic. It works for rough crosscuts but has a bit of play in the miter slot that makes it unsuitable for precise joinery work without some shimming or upgrading.

If you’re serious about crosscuts, get an aftermarket miter gauge or build a crosscut sled. The DW7480 accepts standard miter gauge slots (3/4 x 3/8 inch), so there’s plenty of aftermarket support.

For site work where you’re doing rough crosscuts to length, the stock gauge is fine. For furniture or cabinetry where tolerances matter, upgrade it.

How It Compares to the Competition

I don’t think spec tables tell the full story, but they help put things in context.

The Bosch GTS1031 is smaller and lighter, which makes it the better choice if pure portability is your top priority. But you give up rip capacity and the DeWalt’s fence system is at least comparable if not slightly more rigid. The Ridgid R4521 gives you more rip capacity and a better fence, but it’s not really a portable saw — it’s a contractor saw that happens to have wheels.

For most contractors and serious DIYers, the DW7480 sits in the sweet spot. Not the best at anything specific, but capable enough at everything.

Final Ratings

If I had to sum it up after using it on actual jobs:

Who Should Buy the DW7480

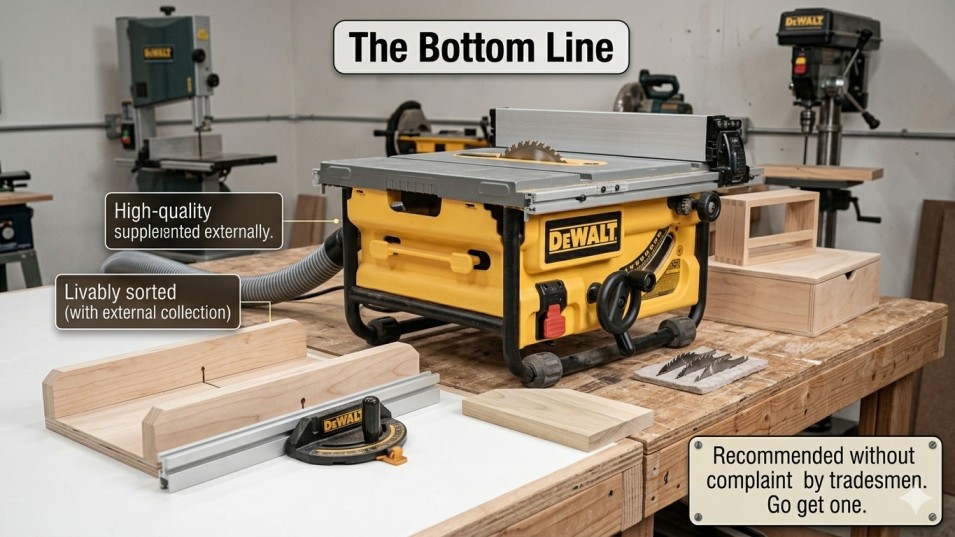

The Bottom Line

This isn’t a perfect table saw, and it doesn’t try to be. I’m not sure the perfect portable table saw exists at this price point. But it’s one of those tools that quietly gets the job done without turning into a problem. If you’re using it on jobsites or as a secondary saw, it makes sense.

The motor is the standout. The fence works. The riving knife is genuinely good. Dust collection is the one thing I wish they’d sorted better. But if you’re working on site or in a shop where dust collection is supplemented externally, it’s livable.

If I were buying again, I’d still probably choose it for jobsite work. But I’d also seriously consider stepping up if I was staying in one shop full-time.

It really depends on how you work. That’s the honest answer
