Best Table Saw Crosscut Sleds (2026): Top Picks + Free DIY Plans

Short answer: the Rockler Universal Table Saw Crosscut Sled is the best ready-made option for most home shops, the Kreg Crosscut Sled is the easiest one for a beginner to set up on a weekend, and the INCRA Miter Express is the one furniture makers reach for when a joint has to be perfect. Building your own sled is the cheapest route, and honestly, the one most woodworkers end up doing eventually anyway.

That’s the quick version. Here’s everything else, including a full DIY plan, a materials breakdown, and the mistakes that trip up most first-time sled builders.

Why a crosscut sled beats your miter gauge

Stock miter gauges are loose. Even good ones have some play in the slot.

On a Ridgid contractor saw, that play can be close to half a millimeter. That doesn’t sound like much until you’re trying to cut eight cabinet shelves to the exact same length and two of them come out just slightly off.

A sled removes that play completely. The workpiece sits flat against a fence that’s square to the blade, and nothing shifts mid-cut. Once you’ve used one for a batch of repeat cuts, going back to a miter gauge for that kind of work feels like a step backward.

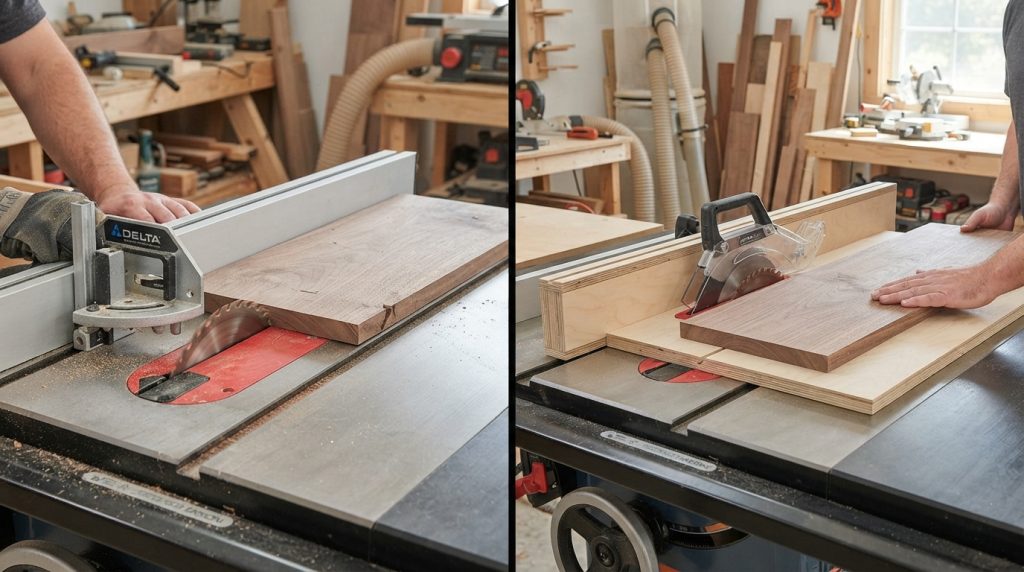

Crosscut sled vs miter gauge

	Crosscut Sled	Miter Gauge
Accuracy	Very high, once squared	Depends on slot fit, usually looser
Support for the workpiece	Full flat support, front and back	Limited support, especially on wide boards
Setup time	Longer to build or square	Ready to use out of the box
Best for	Repeat cuts, wide panels, cabinet parts	Quick single cuts, angled cuts
Portability	Bulky, stays near the saw	Fits in a drawer

Neither one replaces the other completely. Most shops keep both — a miter gauge for a fast one-off angle cut, and a sled for anything that needs to match exactly.

Crosscut sled vs sliding table attachment

	Crosscut Sled	Sliding Table Attachment
Cost	Low (DIY) to moderate (store-bought)	High — often more than the saw itself
Cutting capacity	Limited by sled size	Usually much larger, good for sheet goods
Installation	Sits on the table, no saw modification	Often needs to be mounted to the saw
Best for	Home shops, cabinet parts, joinery	Production shops, panel processing

If you’re breaking down full sheets of plywood regularly, a sliding table is the better long-term tool. For most home and hobby shops, a sled does the job for a fraction of the cost.

What a good sled actually needs

Feature	Why it matters
Runners that fit your miter slot snugly	Hardwood runners should slide with almost no side-to-side play. Force them in and they’ll swell in humid weather and bind. Leave them loose and your cuts drift.
A rear fence, not just a front one	Supports the cut-off piece so it doesn’t tip or bind as it clears the blade
A true 90° fence	Check it with a square first, then confirm it with the 5-cut method before trusting it
Blade guard or zero-clearance slot	A sled exposes more blade travel than a stock setup, so this isn’t optional
Enough capacity for your work	Undersized sleds are the most common first-build mistake — most people rebuild bigger within a year

What material actually makes the best sled

Material	Pros	Cons
Baltic birch plywood	Very stable, flat, holds screws well	Costs more than regular plywood
MDF	Dead flat, cheap, machines cleanly	Heavy, and it chips at the edges over time
Standard plywood	Cheap, easy to find	Can warp if it’s not a good sheet
Hardwood runners (maple, oak)	Wears well, holds tight tolerance	Needs to be sized carefully to the slot
UHMW plastic runners	Glide smoothly, don’t swell with humidity	Cost more, some woodworkers find them too slick until they get used to them

Baltic birch with hardwood runners is the most common combination in shop-built sleds, and for good reason. It stays flat, and it holds up to years of use without the base sagging.

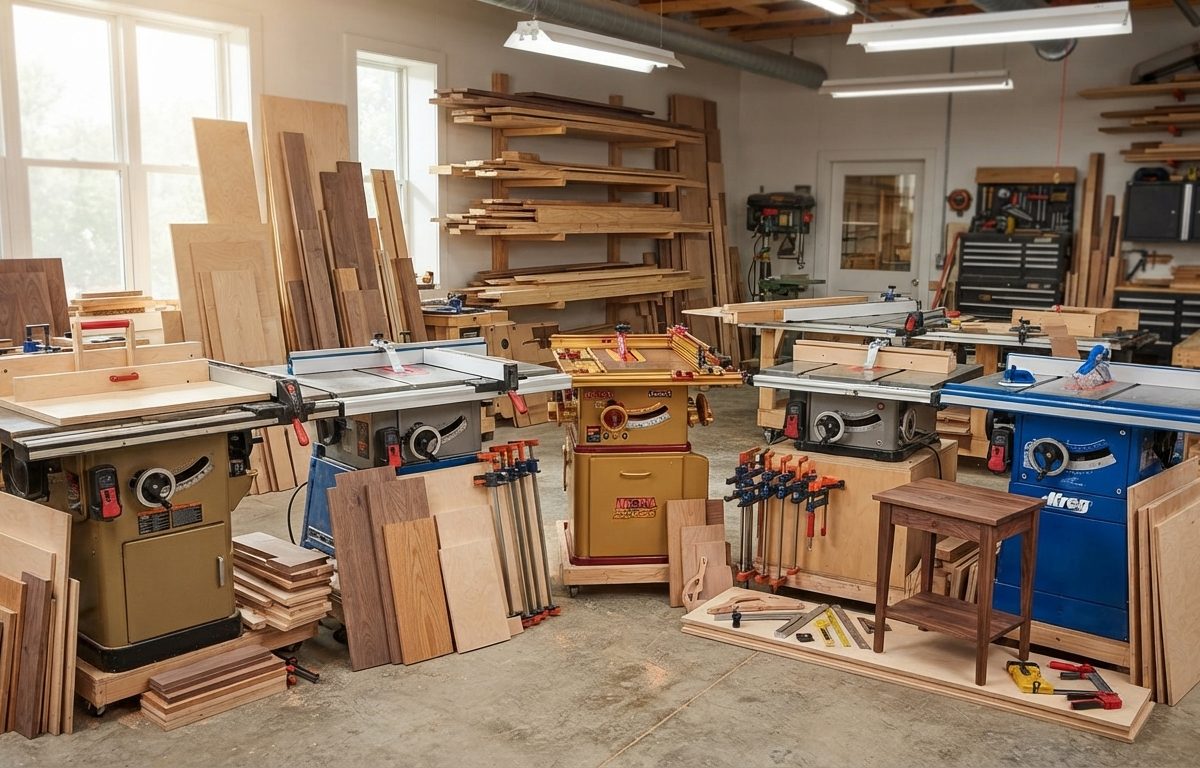

Best ready-made crosscut sleds

Sled	Best For	Capacity	Notes
Rockler Universal Crosscut Sled	Beginners, portable saws	Fits most 10″ saws	Adjustable runners fit slots from 3/4″ to 1″
Kreg Crosscut Sled	Weekend DIY projects	Standard 10″ saws	Simple setup, good accuracy out of the box
INCRA Miter Express	Furniture making, joinery	Standard 10″ saws	Micro-adjust angles, great for repeatable cuts
Osborne EB-3 Sled	Cabinet shops	Larger capacity	Heavy-duty build, holds up to daily production use
DIY plywood sled	Any budget, any saw	Build to your own size	Best value, one weekend to build

Rockler — best if you’re new to sleds and want something that works without a squaring project. Good match for a smaller portable table saw where table space is tight.

Kreg — best for the average weekend woodworker. Not the most precise option on this list, but it’s dependable and easy to dial in.

INCRA — best if your work leans toward furniture and tight joinery rather than general ripping. Pairs well with a jointer jig if you’re doing repeatable box joints or dados.

Osborne — best for anyone running a saw hard, daily, in a cabinet shop setting. Built for that kind of wear.

DIY — best if you’re on a tight budget or need a size nobody sells off the shelf.

Which sled suits your setup

Woodworker Type	Saw Type	Best Sled Approach
Home DIY / hobbyist	Small jobsite or benchtop saw	Rockler or a compact DIY build
Weekend furniture builder	Contractor saw	Kreg, or DIY sized to your projects
Furniture maker / joinery focus	Hybrid or cabinet saw	INCRA Miter Express
Trim carpenter	Portable jobsite saw	Small DIY sled, easy to transport
Cabinet maker	Cabinet saw	Osborne, or a large shop-built sled

If you’re still deciding on a saw itself before adding a sled, our guide to table saws for beginners covers which saw types have enough table surface to support one properly.

How to build a basic crosscut sled (free plan)

This is a simple version. It won’t win any awards, but it’ll cut square all day, and it costs less than a dinner out.

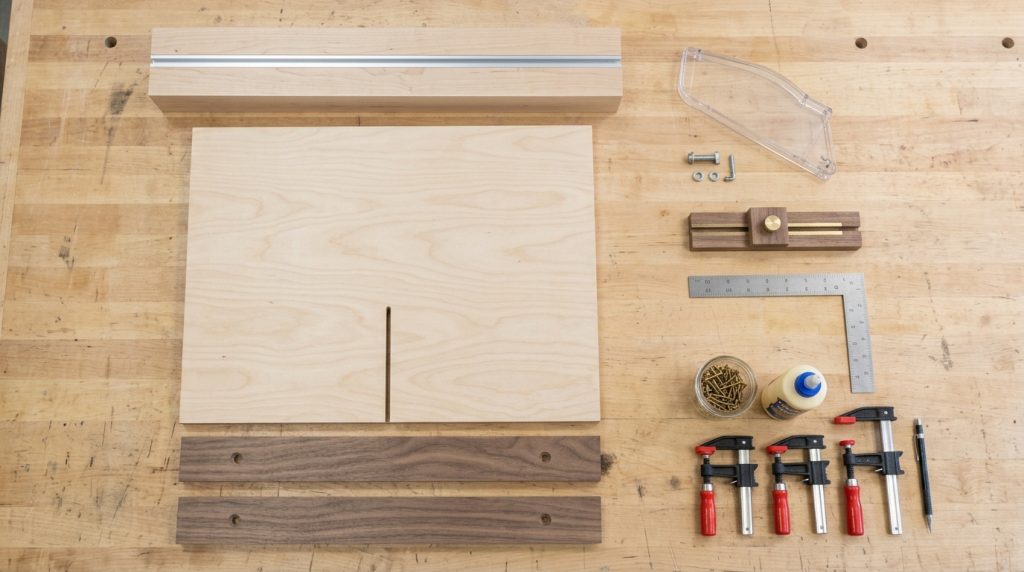

Materials:

Item	Purpose
3/4″ Baltic birch plywood, 24″ x 30″ (or sized to your saw)	Sled base
Two hardwood runners, sized to your miter slot	Rides in the miter slots
Straight hardwood board, 3–4″ wide	Front and rear fences
Wood screws	Assembly
Wood glue	Extra hold on runners

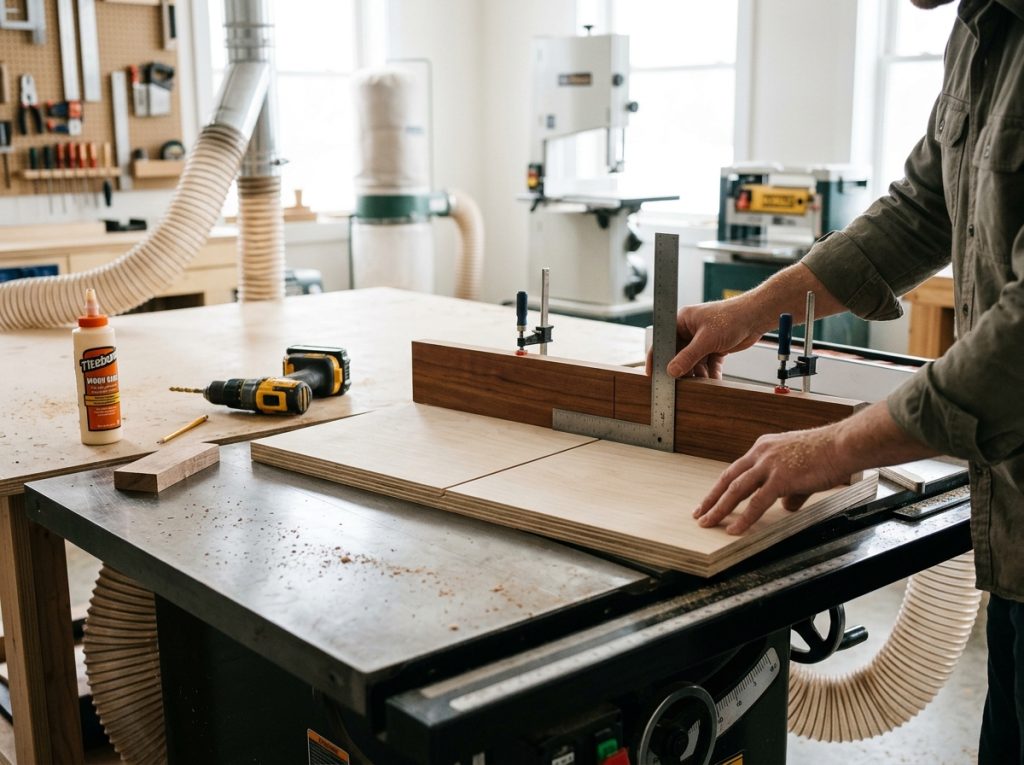

Steps:

1. Cut your runners to fit the miter slots. They should slide smoothly with almost no side-to-side movement. Too tight, and they’ll bind once humidity changes. Too loose, and your cuts won’t stay square.
2. Glue and screw the runners to the underside of the plywood base.
3. Slide the base onto the saw table and run it through the blade once to create the kerf line. This becomes your zero-clearance reference.
4. Attach the rear fence first, squared to the kerf line using a good square — not the saw’s miter gauge, since that’s the thing you’re trying to improve on.
5. Attach the front fence the same way.
6. Test with a scrap cut, check both ends for square, and adjust before you trust it with real material.

Most experienced furniture makers use the 5-cut test after this, because it magnifies tiny alignment errors that a framing square alone won’t catch. You cut a square test piece, rotate it through the fence four times, and measure the final result. Five minutes here can save hours of frustration later when cabinet parts or drawer boxes don’t come together square.

Common upgrades worth adding

Once the basic sled is working, these are the additions most woodworkers add over time:

• Stop block — for repeat cuts at the exact same length, without measuring every piece
• Flip stop — a stop block that flips out of the way for one-off cuts, then flips back for repeats
• T-track — lets you mount stops, hold-downs, and jigs anywhere along the fence
• Hold-down clamps — keeps small or narrow pieces from shifting mid-cut
• Replaceable zero-clearance insert strip — swap out the worn kerf slot instead of rebuilding the whole sled base

None of these are required on day one. Most people add them one at a time as they run into a specific limitation.

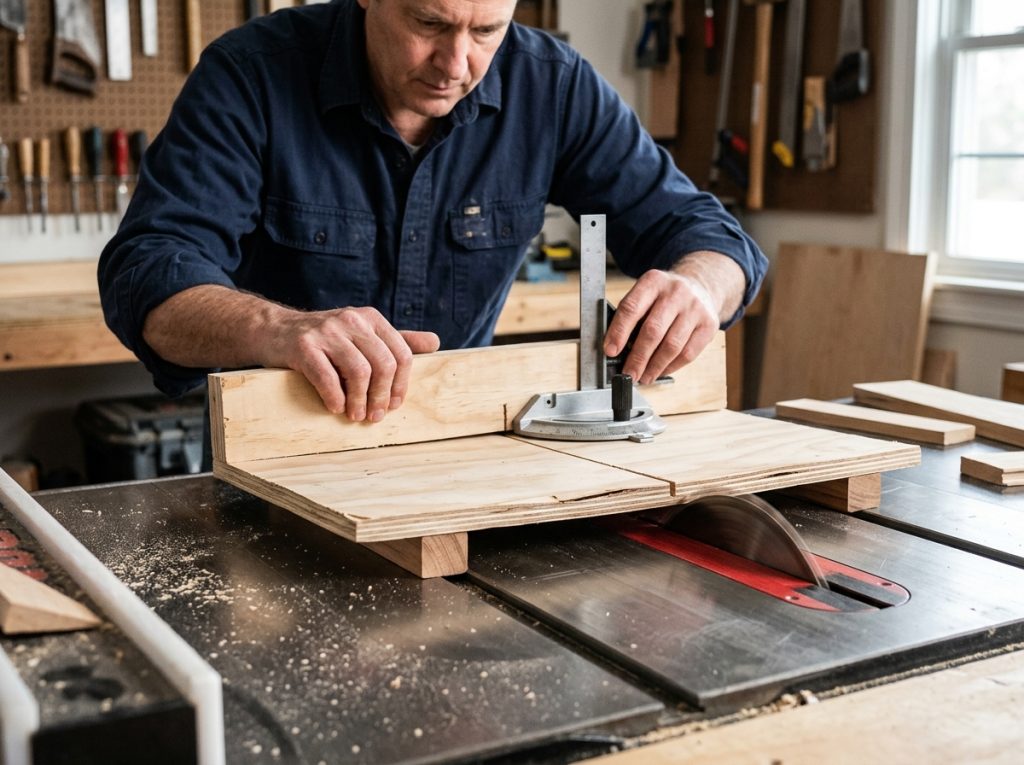

Common mistakes people make with sleds

• Squaring the fence to the miter gauge instead of the blade kerf. This bakes in the same error you’re trying to fix.
• Using runners that are too tight. They bind, especially once humidity changes the wood.
• Skipping the blade guard. A sled exposes more blade than a stock miter gauge setup, since the blade cuts straight through the base.
• Building it too small. Most first sleds get rebuilt bigger within a year.
• Using warped plywood for the base. A sled can only be as flat as the material it’s built from.

Safety mistakes to avoid

A sled is safer than a loose miter gauge in most situations, but only if it’s used right.

• Never pull the sled backward over a spinning blade. Push through, all the way, every time.
• Don’t reach across the kerf while the blade is still spinning.
• Keep the rear fence tall enough to shield the blade as it exits the cut.
• Never use a sled with a warped or cracked base — it won’t ride flat, and that’s when kickback happens.
• Check your blade choice matches the material. A dull or wrong blade increases resistance, and that resistance transfers straight through the sled to your hands.

Maintenance nobody talks about

A sled isn’t a build-it-once-and-forget-it tool.

• Wax the runners every few months. It keeps the sled gliding instead of dragging, which matters more than people expect.
• Replace the zero-clearance strip once the kerf slot gets chewed up from repeated cuts.
• Recheck the fence for square every few months, especially after the shop goes through a humid stretch. Wood moves, even good plywood.

Where a sled fits with the rest of your setup

A sled only works as well as the saw it’s built for. If your rip fence drifts, sort that out first with our guide on aftermarket table saw fences — building a sled around a saw that’s already out of alignment just bakes the problem into a new tool.

If your current miter gauge is the main issue, our miter gauge guide covers upgrades that solve the same drift problem without building anything.

For repeatable joinery work like box joints and dados, pair your sled with a dedicated jointer jig or check our dado set guide for blade options that work well alongside a sled setup.

And if you’re still shopping for the saw itself, our best rated table saw and table saw accessories guides are good starting points before you invest a weekend building a sled around it.

FAQ

Do I need a crosscut sled if I already have a miter gauge? Not always, but a sled gives you far more accuracy and support, especially for wider boards. Most woodworkers keep the miter gauge for quick angled cuts and use a sled for anything that needs to be dead square.

What size should my crosscut sled be? Big enough for your widest common cut, plus a few inches of clearance. Most home shop sleds run 24″–30″ wide. Go bigger if you regularly cut wide panels.

Can I use a crosscut sled on a jobsite table saw? Yes, as long as the table has enough flat surface on both sides of the blade to support the sled’s runners. Very small benchtop saws sometimes don’t have enough table width.

How do I know if my sled is actually square? Use the 5-cut method. It’s far more reliable than checking with a square alone, since it magnifies small errors that add up over a cut.

Is a store-bought sled worth it over building one? If your time is limited, yes — a ready-made sled saves a weekend. If you’re on a budget or need a custom size, building one is the better call.

What’s the best material for a shop-built sled? Baltic birch plywood for the base, paired with hardwood runners. It stays flat over time and holds up to years of regular use without sagging.
